Model : WD-160
- Capacity(L) : 158L
- Display : 8.8 inch LCD Touch screen
- Drying Method : Chamber forced air drying
- Air Heating Consumption : 0.5kW
- External Size(W×D×H)(mm): 640x726x778

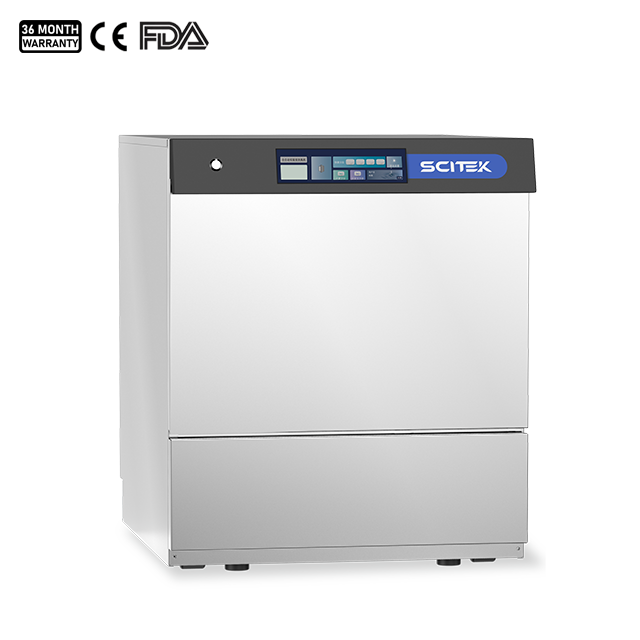

Laboratory Glassware Washer, WD-160
Laboratory Glassware Washer provides a standardized cleaning solution, with a traceable cleaning process,protect the safety of operators. Start standardizing cleaning process in your laboratory.
Application:
Laboratory glassware washers can effectively clean a wide range of glassware, including beakers, flasks, test tubes, pipettes, burettes, and more. They can remove residues, contaminants, and other substances that may affect the accuracy and reliability of laboratory experiments.
Advantages:
1. Advanced Microcomputer control system with full color LCD touch screen:
*Graphical and digital display of real-time water inflow, cleaning procedures, cleaning stages, columnar changes in time and temperature , pipeline pressure data and other parameters
*System software can be redesigned to meet customer needs, and it can support the expansion of hundreds of applications.
*The desktop can be configured to set up quick launch programs.
*Three optional password protection can be set: Finger Print;Password;No password
2.Advanced water spray technology
*Pressure pipeline detection : Laboratory Glassware Washer uses pressure detection sensors to real-time monitor the pressure of the cleaning water pipeline. When the water pressure is too low, it pauses the operation of the water pump to prevent it from running dry.
*The circulating pump adopts soft start variable frequency control to avoid the damage caused by excessive water column pressure to glassware during the instantaneous start of the pump.
*Two parallel water inlets at the back ensure uniform pressure distribution for each shelf and every spray nozzle.
 |
1.Speed Sensor for Spray | |
| 2.Water Pressure Sensor | ||
| 3.Flow Meter | ||
| 4.Water Inlet Solenoid Valve | ||
| 5.Pure Water Pump | ||
| 6.Tap Water Pump | ||
| 7.Thermostat Knob | ||
| 8.Water Immersion Sensor | ||
 |
1. Fan | |
| 2.Heating pipe |
||
| 3.Air filter |
||
| 4.Heat Exchanger |
3. Modular Design of FL-EXCH Racks
*Each 1/2 module can be interchanged horizontally and vertically.
*The racks adopts a quick-insert design, making installation simple and concise.
 |
 |
4. Safety
*Laboratory glassware washers help ensure the safety of laboratory personnel by eliminating the need for manual washing, which can be time-consuming and potentially hazardous. The automated cleaning process reduces the risk of injury from broken glassware or exposure to harmful substances.
*Water heating over-temperature protection, hot air heating over-temperature protection, water pump over-temperature protection, fan over-temperature protection.
*Electronic security lock, EULA electric door switch technology, the experimenter can set the door opening temperature limit.
Cleaning Chart Flow
Cleaning Process Parameters
| Time(min) | Temp(℃） | Alkaline (ml) | Acid(ml) | Water source | |
| Pre-wash | 2 | 10 | 0 | 0 | tap water |
| Main wash | 15 | 70 | 50 | 0 | tap water |
| Neutralization | 3 | 40 | 0 | 50 | tap water |
| Rinse 1 | 1 | 10 | 0 | 0 | tap water |
| Rinse 2 | 1 | 10 | 0 | 0 | purified water |
| Rinse 3 | 1 | 60 | 0 | 0 | purified water |
| Drying | 5 | 100 | 0 | 0 | / |
WD-160: Small size, it can be placed under the bench or on the bench, it is an economical and practical lab washer.

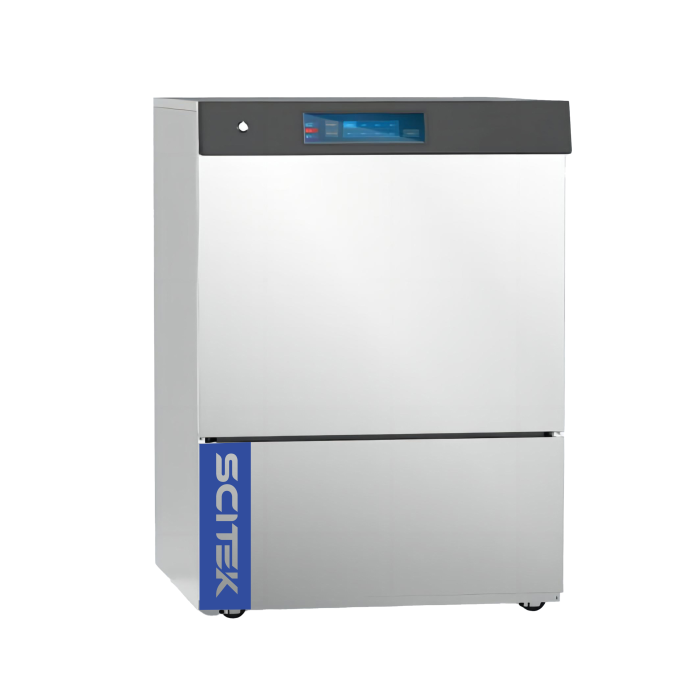

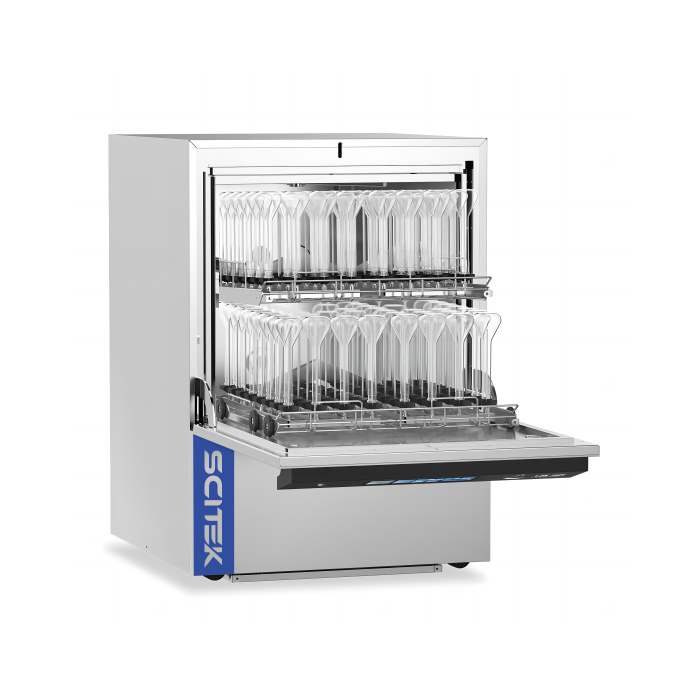

WD-190:Small size, large cleaning volume, the drying function can select;
WD-230/WD-230H:High-throughput cleaning while occupying a smaller footprint;
WD-320I/WD-320H:Large cleaning volume, it can place 3 layers of cleaning basket;
WD-680:Simen control system, it can place 6 layers of cleaning basket.
Specification:
| Model | WD-160 | ||
| Capacity(L) | 158L | ||
| Display | 8.8inch LCD Touch screen | ||
| Standard Program | 30 | ||
| Self-defined Program | 120 | ||
| Searchable
Data Files |
Cleaning program files; Cleaning record files; Monitor files | ||
| Storage | No | ||
| Permission Management System | Three level | ||
| Printer | No | ||
| Drying | Drying System | No | |
| Drying Time Range | No | ||
| Drying Temp Range | No | ||
| Drying Method | Chamber forced air drying | ||
| Water Inlet pipe | Quantity | 2 | |
| Length | Standard: 2m (Customizable) | ||
| Material | PVC | ||
| Water Pump | Brand | Sweden | |
| Flow Rate | 0-400L/min | ||
| Consumption | 0.37kW | ||
| Pipeline Pressure Monitoring | No | ||
| Structure | Material | External | 304 stainless steel |
| Cleaning Chamber | 316 stainless steel | ||
| Door | Automatic multi-touch intelligent door.
In standby mode, there is a gap between the front door and the cavity to facilitate water vapor evaporation. Automatically locks when cleaning starts. |
||
| Caster | Four universal casters at the bottom of the instrument for easy movement | ||
| Cleaning Rack | 1 layer | ||
| Air Heating Consumption | 0.5kW | ||
| Power Supply | 220/110V,50/60Hz | ||
| Total Consumption | 5kW | ||
| External Size(W×D×H)(mm) | 640x726x778 | ||
| Shipping Size(W×D×H)(mm) | 970x840X1350 | ||
| N.W./G.W. (kg) | 135/150 | ||
